Real Schindler roller? Fake Schindler roller? How to distinguish?

As we all know there are some fake Schindler fake rollers on the market, and these fake roller have the very cheap price but with the bad performance, and today we will using one kind of Schindler roller to show the difference between real one and fake one, and this will help you to distinguish.



At first let’s contrast the appearance
  • We can see the true one’s appearance is creamy white, and it’s lustrous, and feels smooth;
  •  But the fake one’s color is bright white, and it feels like plastic, Hard and rough plastic;




Then we see the details
We can see the part No and brand name very clear on the real one;




How about the fake one? Let’s see the picture.
We can see there have no brand name, no part No…nothing, and we even see the burrs.

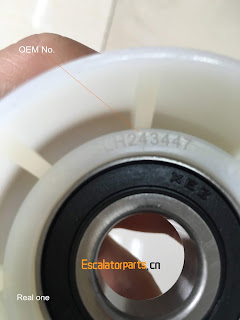

Let’s see again of real one’s details
And we can see the brand’s name very clear, Schindler.



We can clearly see the part No: SLH243447.




And we can see, the real one’s serial number also very clear, and let’s see the fake one, you will find the difference.




The fake one’s serial number have the different typeface and the different size.




And we have another way to show the difference between the real one and fake one: the net weight.
We can see the real one’s net weight is 0.162kg.




The fake one’s net weight only 0.154kg, so the real one is heavy than the fake one.



Summarize
Summarize
item
real one
fake one
Color
cream white
bright white
sense of touch
smooth
incondite
brand name
yes
no
part number
yes
no
serial number
yes
yes
net weight
0.162kg
0.154kg





 So buy 100% real SLH243447 Escalator Handrail Rollers OD70 Thickness 50 Bearing 6204-2RS, pls visit http:// www.escalatorparts.cn

Thursday, August 9, 2018

The difference between all kinds of escalator handrail drive metholds

In practical application, the drive mode of the handrail is divided into two driving modes according to the number of friction wheels: large friction wheel drive and small friction wheel set linear drive. At present, most companies use large friction wheel drive, and only few of companies use small friction wheel set linear drive, mainly some Japanese companies.

The comparison diagram of various driving modes as follows:

Driver comparison of handrail (The full mark is 10)
Friction wheel size
Driving position
center drive
driving on head
center drive
Auxiliary pressure
roller belt
conveyor belt


drive capability
7
6
9
4
riding comfort
6
6
9
9
spatial requirement
9
9
6
9
Handrail bending times
5
5
8
8
maintainability
6
6
8
4
reliability
6
6
8
4
Surface discoloration condition of handrail
9
5
9
9
surface indentation condition of handrail
5
9
9
5
Cost
9
9
6
4


1, Big friction wheel- driving on head






2, Big friction wheel-roller belt drive method








3, Big friction wheel-conveyor belt method









4, small friction wheel set linear drive

Sunday, August 5, 2018

Help you know KM982792G33 KONE Elevator Tachometer



1, appearance
2, open it



3, details




KM982792G33 KONE Elevator Tachometer
Item
KONE Elevator Tachometer
Brand
KONE
Specification
KONE Elevator Tachometer
Size
GTF 7.16L/460 replace KM276027
P/N
KM982792G33
Delivery time
7  working days after the payment
HS code
8431310001
Net weight
1.8kg/pcs
MOQ
1pcs
Warranty-Time
1 years
JF’s expert: Jiefeng E&E CO.,LTD the biggest elevator and escalator parts supplier and trader in China.
JF’s products: We are supplying all kinds of elevator and escalator parts for Mitsubishi, OTIS, LG-Sigma, KONE, Schindler, Toshiba, Fujitec, Hyundai, Hitachi, ThyssenKrupp and some Chinese brands, such as KOYO, STEP, BLT, we also supplying the Mechanical parts here, like Rollers, door shoes, door header, Step Chain, Escalator step, Escalator handrail, Escalator comb plate, Escalator yellow cleats, etc.
JF’s guarantee: We are offering 12month guarantee for our spare parts here and guarantee its Origin and all the parts will be testing before delivery to make sure its working conditions, if any parts in poor quality, we will take it our and exchange it at our cost here!
JF’s Payment term: T/T or PayPal
JF’s Quality control: All Parts to be tested here for delivery.
Email: jill@elevator.hk; Jieson@elevator.hk; jiefeng02@elevator.hk;
