colorful escalator handrail

This article will help you know colorful escalator handrails.

In normal there have 8 colors on the market, and the colors as follows:

We have 9 kinds of colors, more than 1 color, and this color is pink,and our colors as follows:

The colorful escalator handrail still have C type and V type, today we will show these kinds of colorful escalator handrails.

1, Let's see the C type colorful escalator handrail first;

KR007 Green color

18 pcs stainless steel wire ropes as photos.

7 strands for 1 pcs stainless steel wire rope

2, V type escalator handrail

KR003 blue color colorful escalator handrail

As C type, still 7 strands for 1 pcs stainless wire rope.

But V type have 21 pcs stainless wire ropes.

Escalator friction wheel

Escalatorfriction wheels is a part of escalator, and it’s quick-wear part, this article will help you know escalator fricion wheel.

Technology

Escalatorfriction wheels consist of an elastomer coating and a metal body.

The elastomer coating is like the escalator handrail’s coating.

The friction lining is permanently joined to the metal part.

The polychloroprene based elastomer mixture used has a hardness of 80 ± 5 Shore A. It is wear resistant and largely oil resistant, by the way Escalator firction wheel also using ellow paint to rust-proof.

The metal body is made from standard free cutting  steel 9 S 20 K. Centerings are provided for subsequent machining.

The metal body is wider on one side than the friction lining for easy rolling gear mounting.

Installation

The axles of the driving and driven shafts must be aligned parallel. Radial runout of the wheels must be avoided.

Where rolling gears are mounted side by side, the shaft must have sufficient rigidity.

For applications requiring a virtually vibration-free drive and high concentricity – and rolling gears mounted in pairs – the rolling gears must ground after mounting.

Worn rolling gears must be replaced in pairs.

In this way,the high production tolerances are compensated and rolling gears mounted in pairs are subjected to uniform load.

matters need attention

When machining the metal parts, the temperature of the metal should not exceed 100 °C. When grinding and turning, the temperature of the friction lining should not exceed 70 °C, briefly 80 °C.

Reciprocating longitudinal grinding produces a smooth surface.

Face grinding must be avoided.

Exerting low pressure prevents excessive heating. The elastomer coating smears under excessive pressure.

If the surface is smeary, interrupt grinding and allow the elastomer coating to cool down completely.

Apply talcum powder to the surface.

Subsequently grind clean exerting low pressure.

In normal the thickness of escalator friction wheel is 5-7mm, and i can working over more than 12months, our escalator friction wheel's thickness can be 9-10mm, so ours can working over more than 24months.

So pls contact us if you interested in escalator friction wheel, and you can buy escalator friction wheel from alibab

Package of escalator friction wheel

logo of HQ escalator step chain

Today our quality inspector found a problem on our step chain, she found the logo of step chain is not the same as before, so she feedback to our purchase colleague, then our purchaser ask this thing from the factory, and we got the final result: HQ's escalator step chain have 2 kinds of logos, one is only the earth, and another is the earth add H, and they are all orginal, the photos as follows:

Elevator tool list

Elevator tool list
Item	Brand	The number of versions	Part number	JF code	More
1	Otis	4 kinds type	GAA21750AK3	OTEL0030 OTEL030105 OTEL0002L OTEL21750AK3	More
2	KONE	5 kinds type	KM878240G03	KOEL1004 KOEL1003 KOEL0110 KOEL0109 KOEL0108	More
3	Schindler	1 kind type	SSM 336515	SHDP5030	More
4	Thyseenkrupp	3 kinds type	TCM/API	TKEL5012 TKEL5011N TKEL5011	More
5	LG Sigma	5kinds type	DOA-110 OPP-2000	SMEL2000 LGEL0010 SMEL0100 SMEL0100C SMEL2001	More
6	Mitsubishi	1 kind type	MC	MIEL5017	More
7	Dongnan	1kind type	/	DNEL1001	More
8	Hyundai	1kind type	HHT-2000	XDEL1001	More

Escalator Step cleaning machine

Escalator Step cleaning machine wire version
Item	Escalator Step cleaning mahcine
Brand	JIEFENG
Specification	Escalator Step cleaning machine
Size	220V with wire
JF code	QJJQ0001
P/N	SC-450D
Delivery time	5 working days after the payment
HS code	8431310090
Net weight	36 kg/pcs
MOQ	1pcs
Warranty-Time	1 years
JF’s expert: Jiefeng E&E CO.,LTD the biggest elevator and escalator parts supplier and trader in China. JF’s products: We are supplying all kinds of elevator and escalator parts for Mitsubishi, OTIS, LG-Sigma, KONE, Schindler, Toshiba, Fujitec, Hyundai, Hitachi, ThyssenKrupp and some Chinese brands, such as KOYO, STEP, BLT, we also supplying the Mechanical parts here, like Rollers, door shoes, door header, Step Chain, Escalator step, Escalator handrail, Escalator comb plate, Escalator yellow cleats, etc. JF’s guarantee: We are offering 12month guarantee for our spare parts here and guarantee its Origin and all the parts will be testing before delivery to make sure its working conditions, if any parts in poor quality, we will take it our and exchange it at our cost here! JF’s Payment term: T/T or PayPal JF’s Quality control: All Parts to be tested here for delivery.

What is the Otis test tool? GAA21750AK3? GAA21750AK2?

There are lots of Otis test tools on the market, and this article will help you know the difference.

Ok, there have 4 kinds of Otis test tools on the market:
1, GAA21750S2
2, GAA21750AK2
3, GAA21750AK3
4, GAA21750AK4

And at first, we can see the photos of these Otis test tools:
1,GAA21750S2

black one

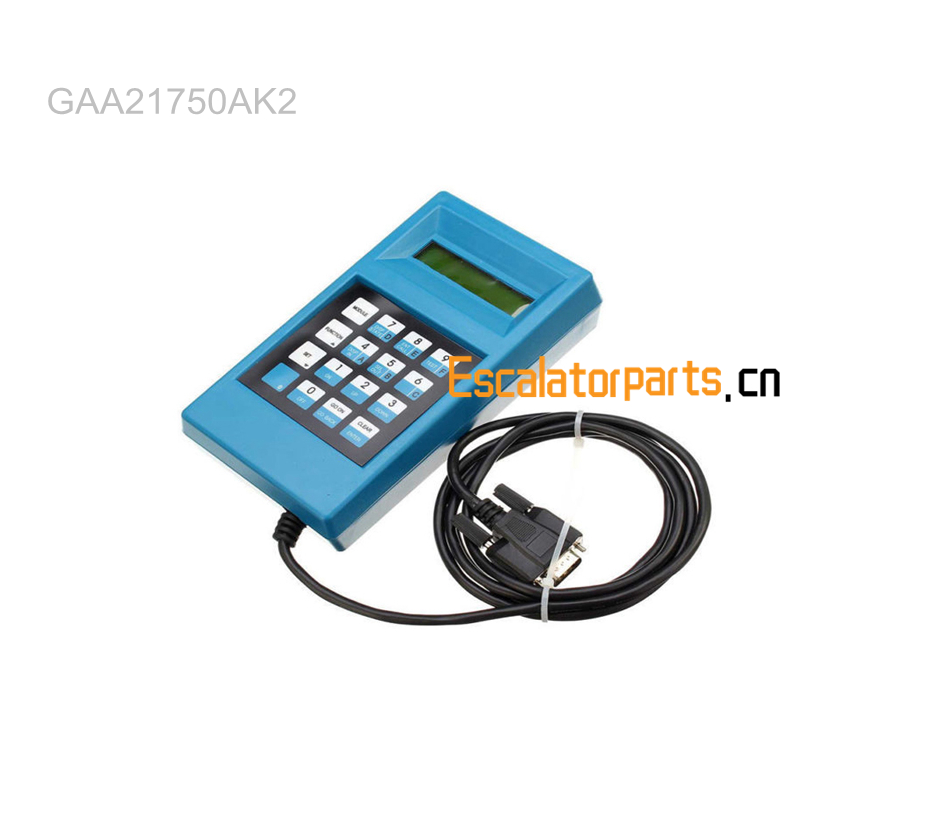

2, GAA21750AK2

blune one



3, GAA21750AK3

Still blue one



4, GAA21750AK4

Blue


So it's hard to differentiate only based on the appearance.

And the detail difference as follows:

OTIS Elevator Test Tool
JF code	OTEL0030	OTEL030105	OTEL0002L	OTEL21750AK3
Item	OTIS Elevator Test Tool （Black)	OTIS Elevator Test Tool(blue)	OTIS Elevator Test Tool(blue)	OTIS Elevator Test Tool(blue)
Brand	OTIS	OTIS	OTIS	OTIS
Specification	OTIS Elevator Test Tool （Black)	OTIS elevator test tool 2008 type(blue)	OTIS Elevator Test Tool(blue)	The latest OTIS Elevator Test Tool(blue)
Size	GAA21750S2 can not using for GECB board, even reading	GAA21750AK2 Can Used on all the otis elevator but GECB board; Can read GECB boar, but can not change the arguments	GAA21750AK3 can use for all kinds of otis lift even inculde GECB board, can using 65000times, and it have to send back to refresh when the 65000 times is used up	GAA21750AK4 is final version one, it can use for all kinds of otis lift even inculde GECB board, and it's real no limited times;
P/N	GAA21750S2	GAA21750AK2	GAA21750AK3	GAA21750AK4
Times	No time limited	No time limited	65000 tims	No time limited
Price	Very very cheap	cheap	moderrat cost	moderrat cost
Delivery time	3 working days after the payment
HS code	8431310001
Net weight	0.7kg
MOQ	1pcs
Optional accessory	Black bag
Warranty-Time	1 years
JF’s expert: Jiefeng E&E CO.,LTD the biggest elevator and escalator parts supplier and trader in China. JF’s products: We are supplying all kinds of elevator and escalator parts for Mitsubishi, OTIS, LG-Sigma, KONE, Schindler, Toshiba, Fujitec, Hyundai, Hitachi, ThyssenKrupp and some Chinese brands, such as KOYO, STEP, BLT, we also supplying the Mechanical parts here, like Rollers, door shoes, door header, Step Chain, Escalator step, Escalator handrail, Escalator comb plate, Escalator yellow cleats, etc. JF’s guarantee: We are offering 12month guarantee for our spare parts here and guarantee its Origin and all the parts will be testing before delivery to make sure its working conditions, if any parts in poor quality, we will take it our and exchange it at our cost here! JF’s Payment term: T/T or PayPal JF’s Quality control: All Parts to be tested here for delivery. Email: jill@elevator.hk; Jieson@elevator.hk; jiefeng02@elevator.hk;

GAA21750S2 (Black one)

Can Used on all the otis elevator but GECB board, even can not read;

GAA21750AK2 (Blue one)

Can Used on all the otis elevator but GECB board;

Can read GECB boar, but can not change the arguments;

GAA21750AK3 (Blue one)

It can use for all kinds of otis lift even inculde GECB board, can using 65000times, and it have to send back to refresh when the 65000 times is used up;

GAA21750AK4 (Blue one)

This is final version one, it can use for all kinds of otis lift even inculde GECB board, and it's real no limited times;

Feature:

1, GAA21750AK2 suit all type of otis lift model which produce before 2008 year and most otis lift model which produced after 2008 but some otis special model which produced after 2008 year which is not sell in chinese market  it may can not use. Totally this tool is better than otis TT GAA21750S2 black color;

2, GAA21750AK3 compare with EUROPE type: the Europe type type need refresh on otis webiste after 200 times, and we have the no time limited, it can be used until the tool is broken, and it can be used on 65000 times in theoretically;

3, GAA21750AK4 can use for all Otis lift, and it's real no time limited
